Jars capping machines, bottle capping systems, plastic bucket sealing machinery

We supply semi-automatic and automatic jars closing machines and bottle sealing machines for twist off jars and bottles as well as machines for pushing in push-in lids. Our capping machines are compact and can be attached to existing systems quickly and easily.
In addition to the sealing machines, we supply lid sorting machines, cap feeder machines, cap / lid applicators, vacuum seal testers, automatic and semi-automatic cappers for paper and cloth caps on the jars and plastic bucket lid jaws.

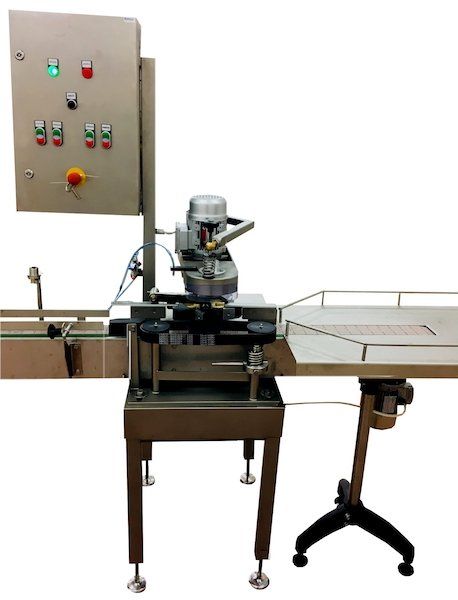

Jars capping machine, Twist-off lid and screw lid, machine for closing glasses, bottles, PET bottles

Capping machine for jars and bottles

The device is designed for capping 0.2-0.9 l jars and bottles (lids/closures/TWIST OFF/plastic lids).
Closing is accomplished using a revolving head with adjustable pressing strength and closing force. It is switched on automatically with jars present and switches off if
jars are absent. Jars/bottles are closed in a stream-like way, operation being limited to device starting and manual putting of lids on jars.
The sealing machine can be combined with a lid feeder.

Technical specifications:
- Height above the conveyor: 500 mm
- Width: 600 mm
- Length: 700 mm
- Performance: up to 5000 bottles / jars per hour

Advantages of the bottle capping machine:

  • Staff savings even up to 2 employees
  • Use of different jars sizes from 0.2 to 0.9 l in standard version or on special order possible
  • Guaranteed uniform closing force with desired attractive torque, which reduces the failure rate down to 0%
  • Can be delivered to the customer sponsor
  • Easy conversion to other packaging and easy regulation
  • Turns on automatically when jars are present and turns off when they are gone
  • Low sensitivity in relation to high deformations and height differences
  • made of acid-resistant materials
Vakuumprüfer für Twist-Off Flaschen und Gläser

Vacuum tester for bottles and jars

The task of the testing and excretion device is to check whether the jars have been properly closed. The tester consists of sensors arranged on the guide. The guide positions the sensors relative to the jars lid. The tester is mounted on the conveyor construction or on a special rack which allows the tester to be placed over the conveyor belt. The structure of the tester allows the change of its altitude according to the height of the lens.
The separator is attached to the side of the conveyor and consists of a pneumatic cylinder whose piston rod cooperates with the ejector. Upon receipt of a signal output by the sensors, the cylinder is set in motion and the ejector shifts (removes) the improperly sealed jars from the conveyor to a table placed next to it.
Technical specifications:
- Voltage: 230V
- Power: 3.5W
- Compressed air consumption: 0.012 m3 / h at 100 cylinder cycles
- Air pressure: 0.6 MPa
- Performance: up to 6000 glasses / h

Lid feeder for glass closures

The lid feeder for twist-off closures is a delivery device for the supply of the closures for jars closing machine or capping machine for bottles.
Technical specifications:
- Type gravimetric
- Capacity from 200 to 4000 packages / hour,
- Glass size from 0.2 to 0.9l.
- Lid size from DN 58 to DN 88
- Device power 0.18 kW (180W).
- Supply voltage 400V
- made of acid-resistant materials
In addition, the feeder is equipped with a distribution star that distributes the jars / bottles during the pad's catches

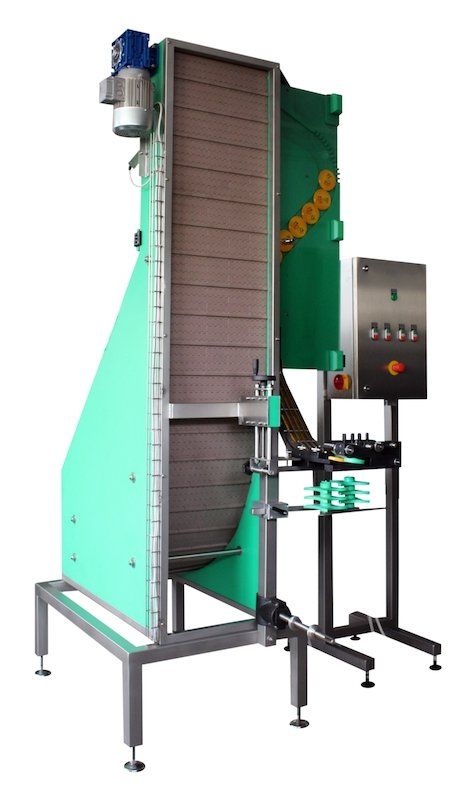

Feeder for twist-off lids

The lid sorter and feeder for twist-off caps is an adjusting device for feeding the twist-off caps to the jar capping machine or bottle capping machine.

The machine for the automatic feeding of the caps is equipped with a collecting container for approx. 1000 caps. The machine sorts the caps and distributes them to the jars. The feeder is equipped with a distribution star wheel, which distributes the jars / bottles during the application of the closures.
Maschine für Zuführung und Sortierung der Verschlüsse von Schraubgläsern, Verdeckler, Gläserverschließmaschine, Twist-Off Gläser Zuführer

Technical data lid feeder / lidding machine

Type: Gravimetric
Performance: up to 5000 lids per hour
Device power 0.25 kW (180W)
Supply voltage 400V
Weight: approx. 150 kg
Dimensions B / L / H (mm): 750 / 1050/ 2600/
Material type: acid resistant

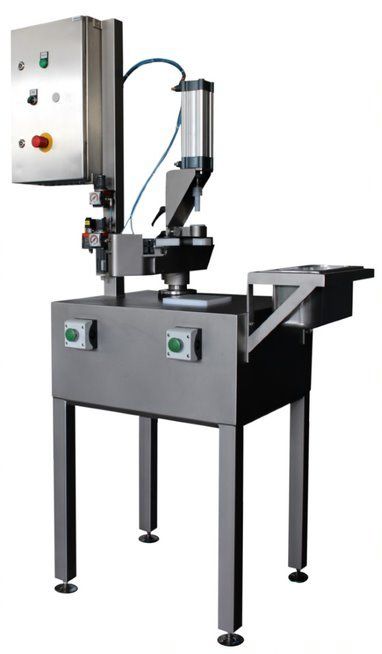

Semi-automatic corker - pneumatic corking machine

The semi-automatic pneumatic corker is designed for closing bottles with natural cork. The cork is manually inserted into the socket of the corking machine, then the device inserts the cork into the bottle.

Matching: Filling machine for honey wine
Verkorker - Korkmaschine pneumatisch halbautomatisch

Technical data corking machine / corker:

Type of container: Bottle / Carafe
Type of closure: Corks
Compressed air pressure: 0.6 MPa
Compressed air requirement: 0.5 m³/hour (at 1000 bar/hour),
Performance: depends on manual skills of the user
Dimensions of the device WxDxH: 1090x560x1740 mm,
Version: acid-resistant steel
Zuführer für Deckel und Verschließmaschine für Kunststoff-Kappen

Lock system for pushing in plastic caps

Including feeder for plastic caps
The closure system is used to push in plastic caps

Technical specifications:
- Performance up to 2500 packages / hour,
- Glass size from 0.2 to 0.9l
- Lid size up to DN 88
- Device power 1.1 kW
- Supply voltage 400V
- made of acid-resistant materials

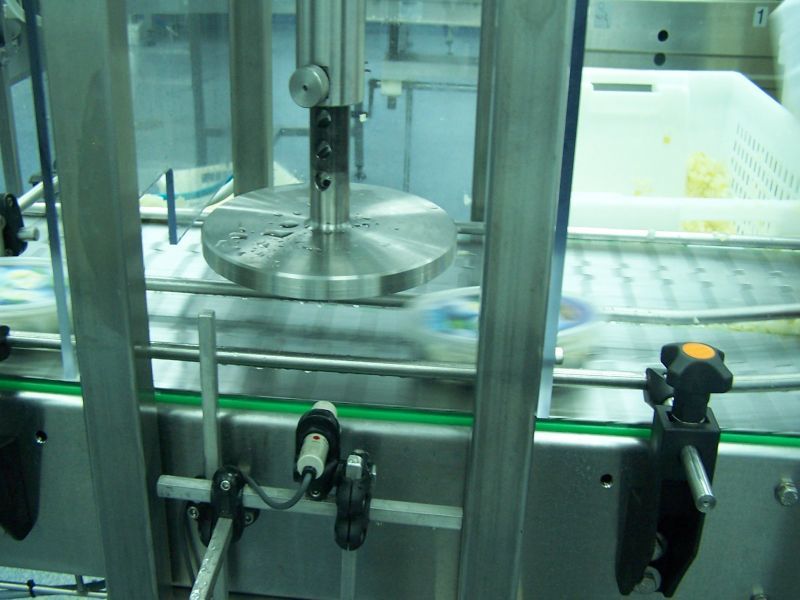

Machine for pushing in lids

The machine is suitable for pushing in lids from conical buckets.

The attached to the upper part of the base
Clamping unit consists of an actuator
pneumatic and pressure plate with a centrally located, removable press. The pressure plate is attached to the end of the piston rod of the actuator
Packaging with the product and manually applied lid are placed under the printing unit.

Technical specifications:
- up to 700 packs / h
- everything made of stainless steel
- semi-automatic plant
Eindrücken von Deckel - konische Eimer

Capping machine PET bottles

The capping machine is used to close PET bottles. The rotating machine head closes the bottles with the lids. The pressure and thus the tightening force can be freely regulated.
The closing process is carried out in the flow process, and the operation is limited to switching on and manual putting the lid on the bottles.
This capping machine can be combined with a lid feeder.
